Discontinued

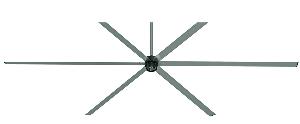

Fan, AirVolution D 780 - 24', 208V-277V

Item Number: EGY06000891 Supplier: ENERGY LOGIC LLC

Description

Utilizing the next generation motor design, this eliminates the gearbox, resulting in reduced noise, zero maintenance and easy installation. Wash down rated for indoor/outdoor use.

Warranty

50,000 hour warranty.

Product Specifications

Motor System Shipping Dimensions: 29 x 30 x 26 in.
Motor Shipping Weight: 351 lbs.
Blade Shipping Dimensions: 144 x 25 x 15 in.
Blade Shipping Weight : 197 lbs.
Hanging Weight : 213 lbs.
Motor Type : Brushless, Permanent Magnet, Transverse Flux DC
Drive Train: Gearless Direct Drive
Equivalent Horsepower Rating: 2.1 HP
Max Operating Temperature: 140°F
Power Source Low Range: 1-phase or 3-phase (208-277) VAC +/- 10%, 50-60 Hz
Fire & Sprinkler: NFPA Compliant
Wash Down Duty Rating: IP66
Number of Airfoils : 6
Max Displacement Forward: 346,000 CFM
Max Displacement Reverse: 256,000 CFM
